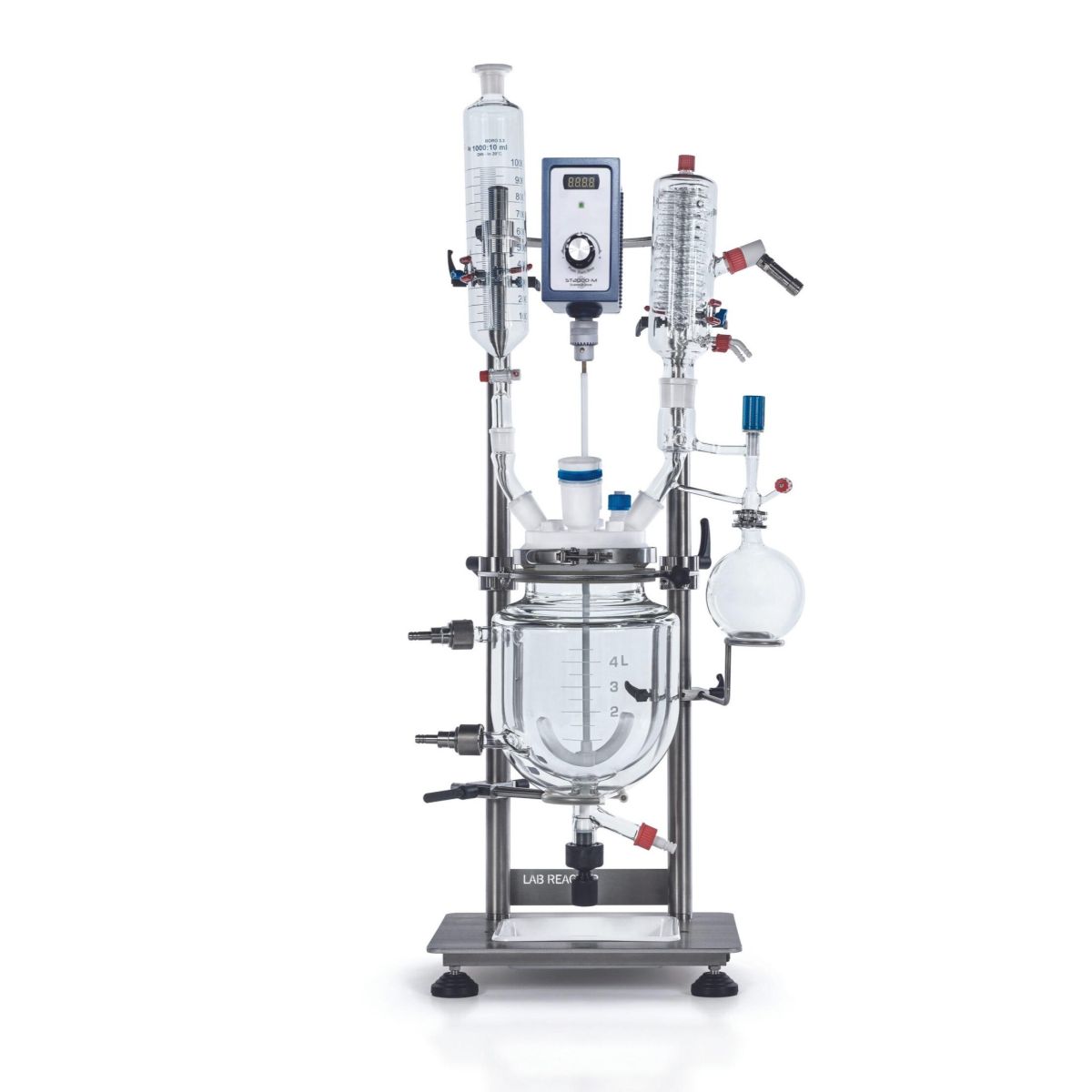

Lab scale reactors are an innovative reaction concept made with the same materials used in the industrial chemical process fabricated in laboratory scale.
Ideal for scale down and scale up processes, it guarantees a quick return on investment for customers’ research projects.
The modular design guarantees quick assembly and elevated flexibility, as well as an adjustable configuration.
The main applications covered are:
- Lab reactor for distillation
- Enzyme digester with automatic pH adjustment
- Reactor/mixer for formulations and emulsion studies
Rangeability
From 300 ml up to 7 L
Design temperature: – 50°C to + 200°C; larger range available on request
Design Pressure: – 1 barg to + 0,5 barg
Max vacuum: 10 mbar(a)
Compatible with various types of heating media (steam, hot oil and hot water)
Agitator system and mechanical seal
PTFE coated AISI 304 stirring shaft and PTFE anchor blade
Wide range of agitation shapes available on request
Lab type mechanical seal made of PTFE/PEEK/glass
Drive unit
Ultra-high torque stirrer, designed for use with remote control
Spindle motor or air motor with inverter option available on request
Compact size
Support frame
Structure made of AISI 304 stainless steel
